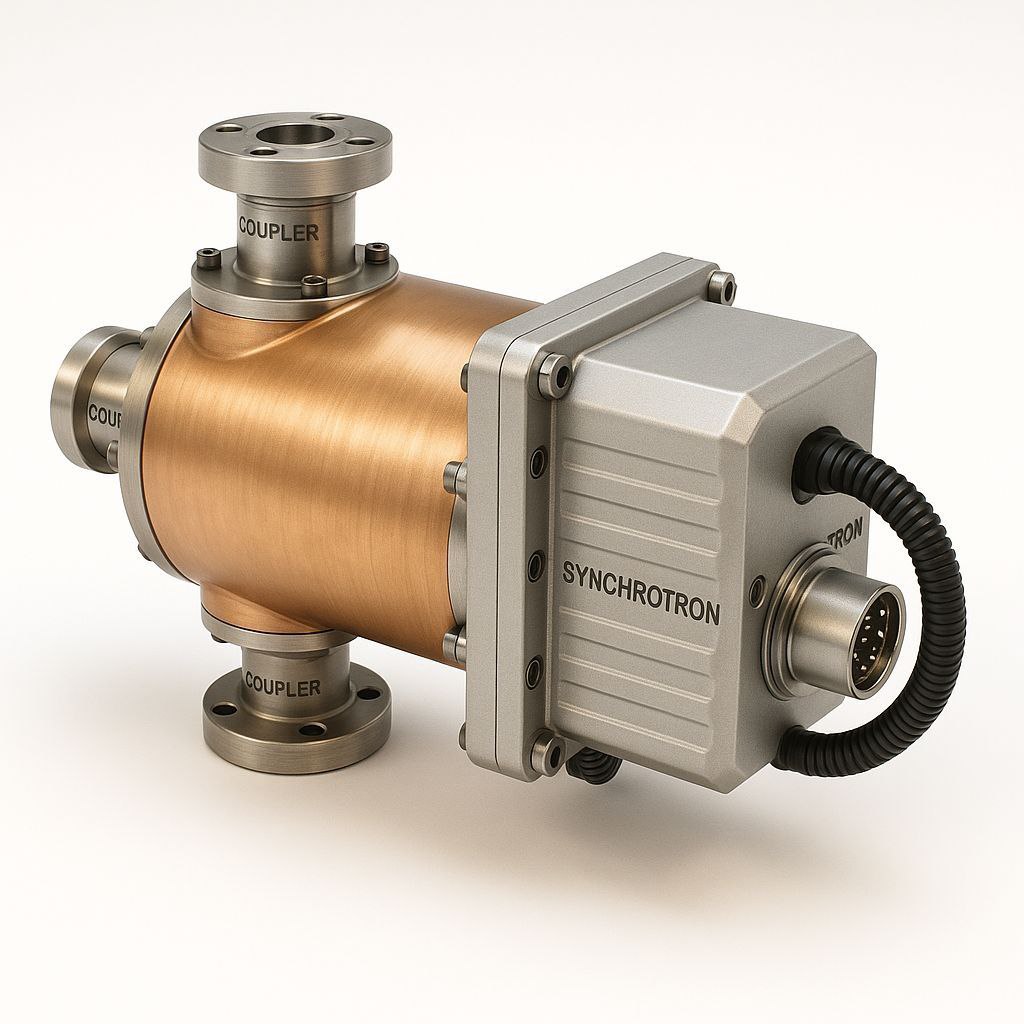

Synchrotron RF Cavity Unit (D1200) SRFC-D1200-9216696
The D1200 Synchrotron RF Cavity is an essential physical resonance unit (Part #SRFC-D1200-9216696) responsible for boosting proton energy levels. This tangible hardware unit is tuned for high-frequency efficiency, minimizing power loss while maximizing energy gain per turn within the synchrotron ring. This component, SRFC-D1200-9216696, meets the highest industry standards.
Technical Specifications
General Overview
Application: Energy modulation in synchrotron-based proton therapy
Compliance: ATEX and PED 2014/68/EU certified
Mechanical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Cavity Material | OFHC Copper (99.99% purity) | High thermal and electrical conductivity |
| Outer Housing | Anodized Aluminum or Stainless Steel | For structural support and shielding |
| Cavity Dimensions | Diameter: 300–800 mm, Length: 400–1200 mm | Custom sizes available |
| Wall Thickness | 10–25 mm | Depending on cavity design |
| Surface Finish | Ra ≤ 0.8 μm | Precision-machined, polished |
| Mounting | Custom adjustable mounting brackets | Hex bolts, anti-vibration pads |
| Cooling | Water cooling channels integrated | 1–5 L/min flow rate |
| Weight | 23 kg |
RF Performance Specifications
| Parameter | Specification |
|---|---|
| Frequency | 30–500 MHz |
| Accelerating Voltage | 10–100 kV per cavity |
| Shunt Impedance (R/Q) | 30–200 Ω |
| Q Factor (Unloaded) | 10,000–25,000 |
| Peak Power Handling | 10–100 kW |
| Tuning Range | ±0.5% of center frequency |
| Coupling Type | Loop or coaxial coupler |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Input Power | 220–240V AC, 50/60 Hz |
| HV Power Supply | External hardware |
| Control System | PLC or FPGA controller hardware |
| Safety Interlocks | Door interlock, over-temp shutdown |
Materials and Construction
| Component | Material | Finish |
|---|---|---|
| Main Cavity Body | OFHC Copper | Polished, anti-oxidation treated |
| External Frame | Stainless Steel / Aluminum | Anodized or brushed |
| Fasteners | Grade 12.9 Stainless Hex Bolts | Black oxide or polished |
| Seals | High vacuum-compatible elastomer | Viton or EPDM |
Environmental & Compliance
| Parameter | Specification |
|---|---|
| Operating Temperature | 10–40°C |
| Cooling Method | Water-cooled jacket |
| Vacuum Rating | 10⁻⁷ to 10⁻⁸ mbar |
| RF Shielding | Integrated Faraday cage |
| EMC Compliance | EN 61000, IEC 60601-1 |
Certifications
- CE Marked
- ISO 13485
- IEC 60601-1 Medical Electrical Equipment Safety Standard
- EMC Compliance: IEC 61000 Series
